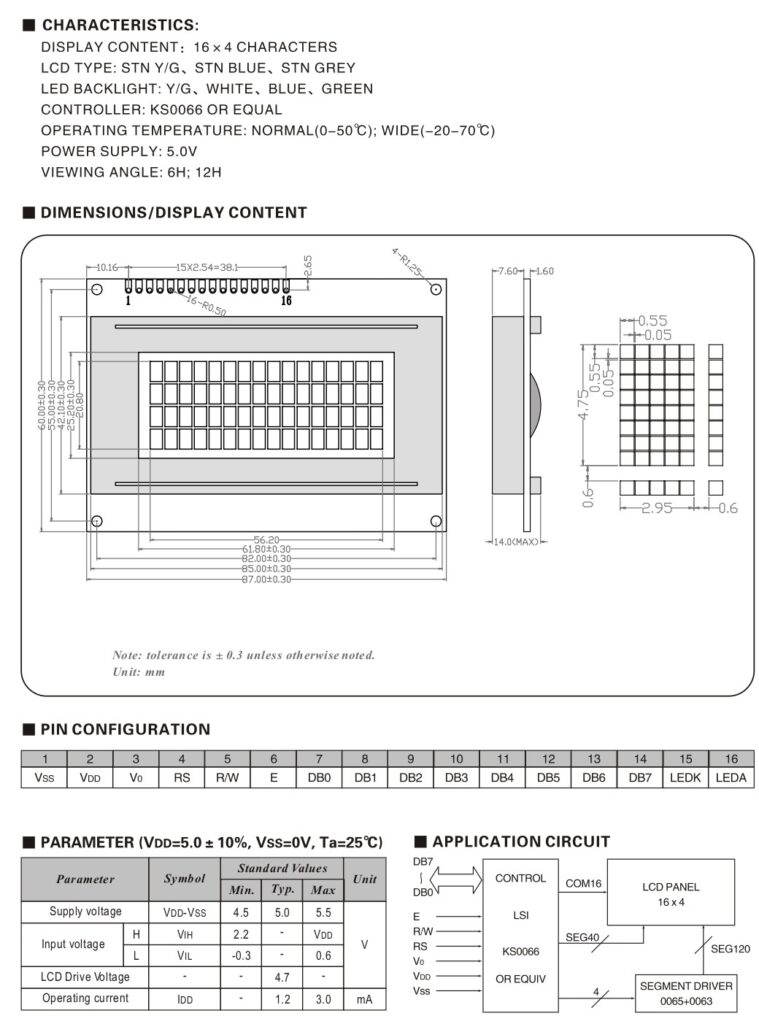

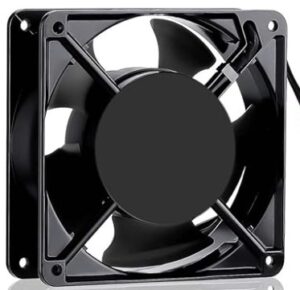

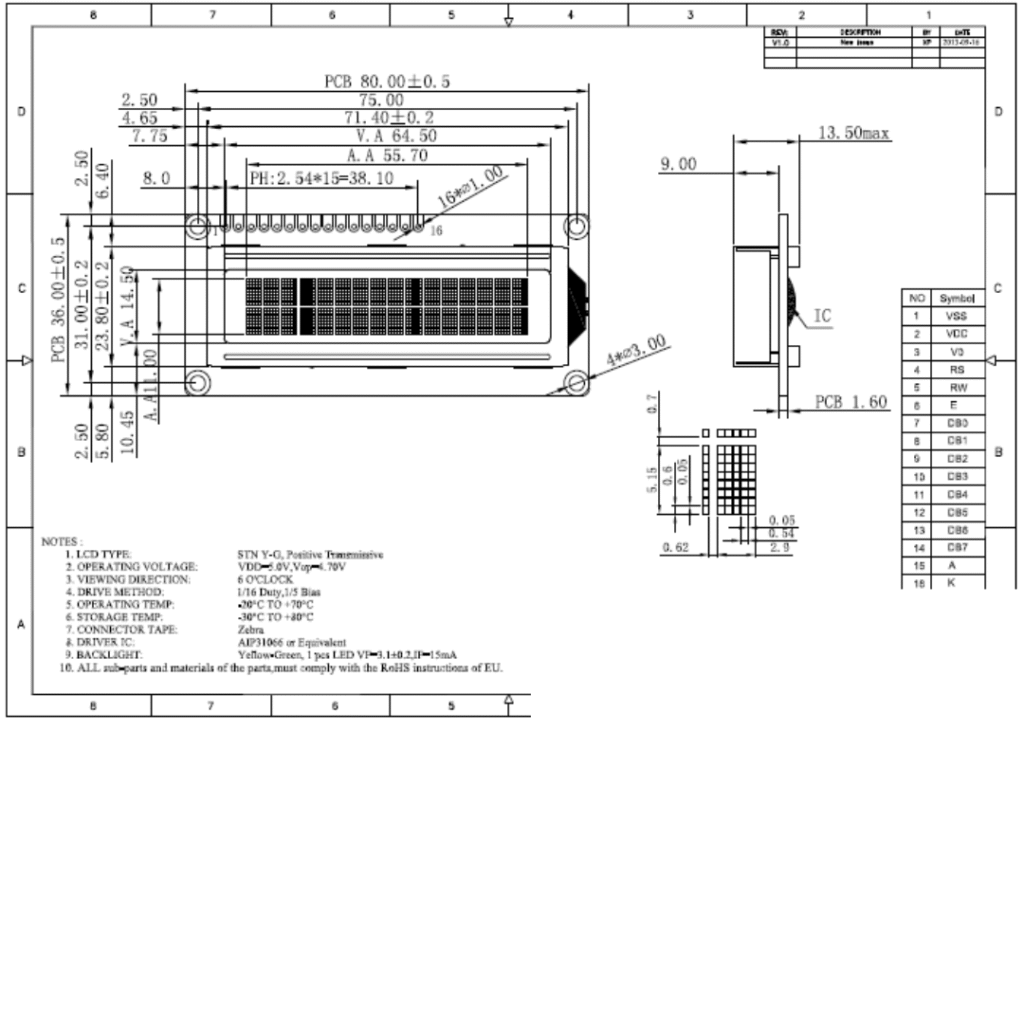

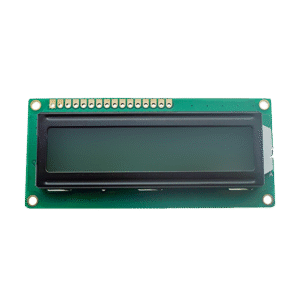

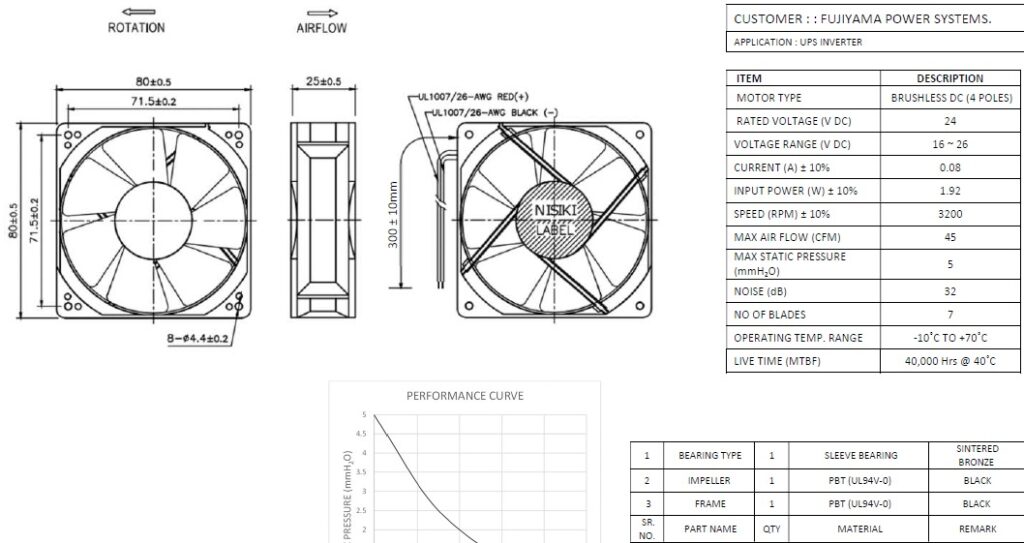

Our Expertise

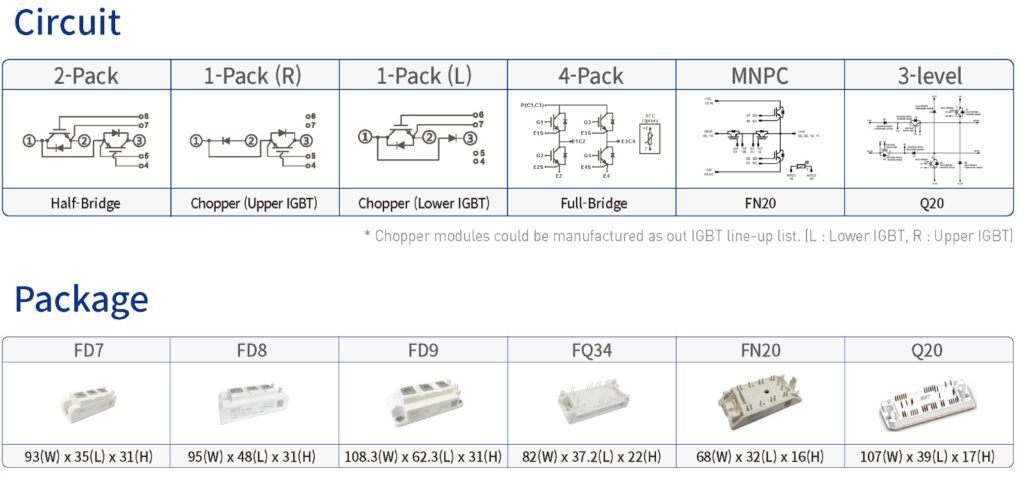

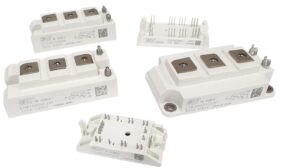

| Package | Part No | Vces [V] | Ic [A] @ 80°C | VCE(sat) [V] @ 25°C | tr [ns] @ 25°C | Circuit |
|---|---|---|---|---|---|---|
| FD7 | ESJ 75 SH 60FA | 650 | 75 × 2 | 1.65 | 60 | 2-Pack |
| ESJ 100 SH 60FA | 650 | 100 × 2 | 1.65 | 70 | 2-Pack | |
| ESJ 150 SH 60FA | 650 | 150 × 2 | 1.65 | 80 | 2-Pack | |
| ESJ 200 SH 60FA | 650 | 200 × 2 | 1.65 | 95 | 2-Pack | |
| FD8 | ESM 150 SH 60FA | 650 | 150 × 2 | 1.65 | 80 | 2-Pack |
| ESM 200 SH 60FA | 650 | 200 × 2 | 1.65 | 95 | 2-Pack | |
| FD9 | ESK 300 SH 60FA | 650 | 300 × 2 | 1.65 | 110 | 2-Pack |
| ESK 400 SH 60FA | 650 | 400 × 2 | 1.65 | 130 | 2-Pack | |
| FQ34 | ESQ 75 SH 60FA | 650 | 75 × 4 | 1.65 | 60 | 4-Pack |
| ESQ 100 SH 60FA | 650 | 100 × 4 | 1.65 | 70 | 4-Pack |
Applications
•Welding Machines, UPS
•High Power SMPS
•Solar/Wind Power system
•Elevator, Industrial Motor
•Industrial Heavy Electronic system
•Telecommunication Power Supply
•Various Switching Electric Railway
•Induction Heater
•Automotive and etc.
| Package | Part No | VCES [V] | IC [A] @ 80°C | VCE(sat) [V] @ 25°C | tr [ns] @ 25°C | Circuit |
|---|---|---|---|---|---|---|
| FD7 | ESJ 75 SH 120K | 1,250 | 75 × 2 | 2.2 | 30 | 2-Pack |
| ESJ 100 SH 120K | 1,250 | 100 × 2 | 2.2 | 45 | 2-Pack | |
| ESJ 150 SH 120K | 1,250 | 150 × 2 | 2.2 | 55 | 2-Pack | |
| FD8 | ESM 100 SH 120K | 1,250 | 100 × 2 | 2.2 | 45 | 2-Pack |
| ESM 150 SH 120K | 1,250 | 150 × 2 | 2.2 | 55 | 2-Pack | |
| ESM 200 SH 120K | 1,250 | 200 × 2 | 2.2 | 65 | 2-Pack | |
| FD9 | ESK 100 SH 120K | 1,250 | 100 × 2 | 2.2 | 45 | 2-Pack |
| ESK 150 SH 120K | 1,250 | 150 × 2 | 2.2 | 55 | 2-Pack | |
| ESK 200 SH 120K | 1,250 | 200 × 2 | 2.2 | 65 | 2-Pack | |
| ESK 300 SH 120K | 1,250 | 300 × 2 | 2.2 | 85 | 2-Pack |
Applications
•Welding Machines, UPS
•High Power SMPS
•Solar/Wind Power system
•Elevator, Industrial Motor
•Industrial Heavy Electronic system
•Telecommunication Power Supply
•Various Switching Electric Railway
•Induction Heater
•Automotive and etc.
400V SERIES
| Package | Part No | VRRM [V] | IF [A] @ 100°C | VF [V] @ 25°C | trr [ns] @ 25°C | IRRM [mA] @ 25°C | Circuit |
|---|---|---|---|---|---|---|---|
| FD3 | ESB 100 NH 40S | 400 | 100 x 2 | 1.05 | 90 | 1 | NH |
| FD3 | ESB 150 NH 40S | 400 | 150 x 2 | 1.05 | 100 | 1 | NH |
| FD3 | ESB 200 NH 40S | 400 | 200 x 2 | 1.05 | 150 | 1 | NH |
| FD4 | ESC 100 NC 40SE | 400 | 90 x 2 | 1.05 | 90 | 1 | NC |
| FD4 | ESC 100 NC 40S | 400 | 100 x 2 | 1.05 | 90 | 1 | NC |
| FD4 | ESC 100 NS 40S | 400 | 100 x 2 | 1.05 | 90 | 1 | NS |
| FD4 | ESC 160 NC 40SE | 400 | 160 x 2 | 1.10 | 100 | 1 | NC |
| FD5 | ESD 150 NC 40S | 400 | 150 x 2 | 1.05 | 100 | 1 | NC |
| FD5 | ESD 150 NS 40S | 400 | 150 x 2 | 1.05 | 100 | 1 | NS |
| FD5 | ESD 200 NC 40S | 400 | 200 x 2 | 1.05 | 150 | 2 | NC |
| FD5 | ESD 200 NS 40S | 400 | 200 x 2 | 1.05 | 150 | 2 | NS |
| SOT-227 | EST 100 BN 40S | 400 | 100 x 2 | 1.05 | 90 | 1 | BN |
| SOT-227 | EST 100 BN 40SN | 400 | 100 x 2 | 1.05 | 90 | 1 | BN |
Applications
•Welding Machines, UPS
•High Power SMPS
•Solar/Wind Power system
•Elevator, Industrial Motor
•Industrial Heavy Electronic system
•Telecommunication Power Supply
•Various Switching Electric Railway
•Induction Heater
•Automotive and etc.
600V SERIES
| Package | Part No | VRRM [V] | IF [A] @ 100°C | VF [V] @ 25°C | trr [ns] @ 25°C | IRRM [mA] @ 100°C | Circuit |
|---|---|---|---|---|---|---|---|
| FD2 | ESA 300 BN 60K | 600 | 300 x 1 | 1.2 | 180 | 15.0 | SS |
| FD3 | ESB 100 NH 60S | 600 | 100 x 2 | 1.3 | 140 | 1.0 | NH |
| FD3 | ESB 150 NH 60S | 600 | 150 x 2 | 1.3 | 120 | 1.0 | NH |
| FD4 | ESC 100 NC 60S | 600 | 100 x 2 | 1.3 | 140 | 1.0 | NC |
| FD4 | ESC 100 PC 60S | 600 | 100 x 2 | 1.3 | 140 | 1.0 | PC |
| FD4 | ESC 100 NC 60K | 600 | 100 x 2 | 1.2 | 140 | 1.0 | NC |
| FD4 | ESC 100 NS 60K | 600 | 100 x 2 | 1.2 | 140 | 1.0 | NS |
| FD4 | ESC 100 PC 60K | 600 | 100 x 2 | 1.2 | 140 | 1.0 | PC |
| FD4 | ESC 100 PS 60K | 600 | 100 x 2 | 1.2 | 140 | 1.0 | PS |
| FD4 | ESC 150 NC 60K | 600 | 150 x 2 | 1.3 | 150 | 1.0 | NC |
| FD4 | ESC 150 PC 60K | 600 | 150 x 2 | 1.3 | 150 | 1.0 | PC |
| FD5 | ESD 150 NC 60K | 600 | 150 x 2 | 1.3 | 150 | 1.0 | NC |
| FD5 | ESD 150 NS 60K | 600 | 150 x 2 | 1.3 | 150 | 1.0 | NS |
| FD5 | ESD 150 PC 60K | 600 | 150 x 2 | 1.3 | 150 | 1.0 | PC |
| FD5 | ESD 150 PS 60K | 600 | 150 x 2 | 1.3 | 150 | 1.0 | PS |
| FD5 | ESD 200 NC 60K | 600 | 200 x 2 | 1.3 | 160 | 6.0 | NC |
| FD5 | ESD 200 NS 60K | 600 | 200 x 2 | 1.3 | 160 | 6.0 | NS |
| FD5 | ESD 200 PC 60K | 600 | 200 x 2 | 1.3 | 160 | 6.0 | PC |
| FD5 | ESD 200 PS 60K | 600 | 200 x 2 | 1.3 | 160 | 6.0 | PS |
| FD5 | ESD 300 NC 60K | 600 | 300 x 2 | 1.35 | 200 | 15.0 | NC |
| FD5 | ESD 300 PC 60K | 600 | 300 x 2 | 1.35 | 200 | 15.0 | PC |
| FD5 | ESD 300 SS 60K | 600 | 300 x 1 | 1.35 | 200 | 15.0 | SS |
| FD8 | ESM 300 NC 60K | 600 | 300 x 2 | 1.35 | 200 | 15.0 | NC |
| FD8 | ESM 300 PC 60K | 600 | 300 x 2 | 1.35 | 200 | 15.0 | PC |
| SOT-227 | EST 100 BN 60S | 600 | 100 x 2 | 1.3 | 140 | 1.0 | BN |
| SOT-227 | EST 100 BN 60SN | 600 | 100 x 2 | 1.3 | 140 | 1.0 | BN |
| SOT-227 | EST 100 BN 60B | 600 | 100 x 2 | 1.3 | 140 | 1.0 | BN |
| SOT-227 | EST 100 BN 60KA | 600 | 100 x 2 | 1.3 | 140 | 1.0 | BN |
Applications
•Welding Machines, UPS
•High Power SMPS
•Solar/Wind Power system
•Elevator, Industrial Motor
•Industrial Heavy Electronic system
•Telecommunication Power Supply
•Various Switching Electric Railway
•Induction Heater
•Automotive and etc.
MOSFET 30V
CEP3034/CEB3034
Features
• 30V, 147A, RDS(ON) = 2.7mW @VGS = 10V
RDS(ON) = 3.3mW @VGS = 4.5V
• Super high dense cell design for extremely low RDS(ON)
• High power and current handing capability.
• Pb-free lead plating ; RoHS compliant.
• Halogen Free
• TO-220 & TO-263 package.
Applications
•Welding Machines, UPS
•High Power SMPS
•Solar/Wind Power system
•Elevator, Industrial Motor
•Industrial Heavy Electronic system
•Telecommunication Power Supply
•Various Switching Electric Railway
•Induction Heater
•Automotive and etc.
MOSFET 60V
CEP6040SL/CEB6040SL
Features
• 65V, 116A, RDS(ON) = 4.6mW @VGS = 10V
RDS(ON) = 7.7mW @VGS = 4.5V
• Super high dense cell design for extremely low RDS(ON).
• High power and current handing capability.
• RoHS compliant
• TO-220 & TO-263 package.
Applications
•Welding Machines, UPS
•High Power SMPS
•Solar/Wind Power system
•Elevator, Industrial Motor
•Industrial Heavy Electronic system
•Telecommunication Power Supply
•Various Switching Electric Railway
•Induction Heater
•Automotive and etc.
MOSFET 100V
CEP170N10S/CEB170N10S
CEF170N10S
| Type | VDSS | RDS(ON) | ID | @VGS |
|---|---|---|---|---|
| CEP170N10S | 100V | 3.7mΩ | 168A | 10V |
| CEB170N10S | 100V | 3.7mΩ | 168A | 10V |
| CEF170N10S | 100V | 3.7mΩ | 168A d | 10V |
Applications
•Welding Machines, UPS
•High Power SMPS
•Solar/Wind Power system
•Elevator, Industrial Motor
•Industrial Heavy Electronic system
•Telecommunication Power Supply
•Various Switching Electric Railway
•Induction Heater
•Automotive and etc.
MOSFET 150V
CEP125N15/CEB125N15
CEF125N15
| Type | VDSS | RDS(ON) | ID | @VGS |
|---|---|---|---|---|
| CEP125N15 | 150V | 7.2mΩ | 125A | 10V |
| CEB125N15 | 150V | 7.2mΩ | 125A | 10V |
| CEF125N15 | 150V | 7.2mΩ | 125A d | 10V |
Applications
•Welding Machines, UPS
•High Power SMPS
•Solar/Wind Power system
•Elevator, Industrial Motor
•Industrial Heavy Electronic system
•Telecommunication Power Supply
•Various Switching Electric Railway
•Induction Heater
•Automotive and etc.
MOSFET 650V
CEP38N65SA/CEB38N65SA
CEF38N65SA
Applications
•Welding Machines, UPS
•High Power SMPS
•Solar/Wind Power system
•Elevator, Industrial Motor
•Industrial Heavy Electronic system
•Telecommunication Power Supply
•Various Switching Electric Railway
•Induction Heater
•Automotive and etc.

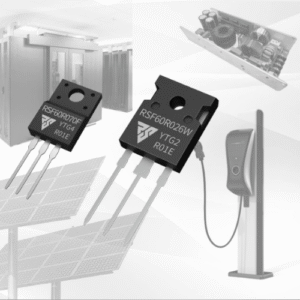

| Type | VDSS | RDS(ON) | ID | @VGS |
|---|---|---|---|---|
| CEP38N65SA | 650V | 0.095Ω | 39A | 10V |
| CEB38N65SA | 650V | 0.095Ω | 39A | 10V |
| CEF38N65SA | 650V | 0.095Ω | 39A d | 10V |
| Reasunos Part Number | BVCES (V) | IC (A) | VCEsat (V) | VGE(th) Min | VGE(th) Typ. | VGE(th) Max | Cies (pF) | Frequency (Hz) |
|---|---|---|---|---|---|---|---|---|
| RSG06N65HD | 650 | 6 | 1.63 | 4.3 | 5.3 | 6.3 | 246 | 20k–40k |
| RSG15N65QSHS | 650 | 15 | 1.5 | 4.2 | 5.2 | 6.2 | 502 | 20k–40k |
| RSG15N65HF | 650 | 15 | 1.6 | 4.1 | 5.1 | 6.1 | 791 | 20k–40k |
| RSG20N65QSHS | 650 | 20 | 1.75 | 4.1 | 5.1 | 6.1 | 780 | 20k–40k |
| RSG40N65BHW | 650 | 40 | 1.85 | 3.4 | 4.4 | 5.4 | 2201 | 40k–60k |
| RSG40N65HW | 650 | 40 | 1.65 | 4.3 | 5.3 | 6.3 | 2540 | 20k–40k |
| RSG50N65HW | 650 | 50 | 1.65 | 4.3 | 5.3 | 6.3 | 3356 | 20k–40k |
| RSG60N65HW | 650 | 60 | 1.75 | 4.3 | 5.3 | 6.3 | 3360 | 20k–40k |
| RSG75N65HW | 650 | 75 | 1.6 | 4.3 | 5.3 | 6.3 | 5660 | 20k–40k |
| RSG25N120QHW | 1200 | 25 | 1.7 | 4.4 | 5.2 | 6.0 | 2270 | 20k–40k |
| RSG40N120HW | 1200 | 40 | 1.7 | 4.3 | 5.3 | 6.3 | 3980 | 20k–40k |
| RSG40N120QHW | 1200 | 40 | 1.95 | 4.8 | 5.8 | 6.8 | 6791 | 20k–40k |
| RSG50N120QHW | 1200 | 50 | 1.75 | 4.5 | 5.5 | 6.5 | 4430 | 20k–40k |
| RSG75N120HWP | 1200 | 75 | 1.65 | 4.3 | 5.3 | 6.3 | — | 20k–40k |
Applications:
• UPS
• Motor drives
• Boost • Portable power station
Solar Inverter • Resonant converters
S3 RELAY 7A SUGAR CUB
Features
- S3 Series Relay covers switching capacity by 1 5 A is spite of miniature spite to comply with user’s wide selection.
- The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions.
- SPNO, SPNC, SPDT and sealed flux free & sealed
Washable type are available.
| Specification | |
|---|---|
| Contact material | Ag Alloy |
| Contact resistance | 100 mΩ Max |
| Operate time | 10 ms Max |
| Release time | 5 ms Max |
| Insulation resistance | 100 MΩ Min. (DC 500V) |
| Dielectric strength | Between open contact : AC 500V, 50/60Hz 1 min. |
| Between contact and coil : AC 1500V, 50/60Hz 1 min. | |
| Vibration resistance | Operating extremes : 10~50Hz, amplitude 1.5 mm |
| Damage limits : 10~50Hz, amplitude 1.5 mm | |
| Shock resistance | Operating extremes : 10G |
| Damage limits : 100G | |
| Life expectancy | Mechanical : 10,000,000 operations (frequency 18,000 operations/hr) |
| Electrical : 100,000 operations (frequency 1,200 operations/hr) | |
| Operating ambient temperature | -30°C ~ +55°C (no freezing) |
| Weight | Approx. 9.5 g |
S3 H RELAY 10A SUGAR CUB
Features
- Low cost miniature
- PCB cube relay.
- General purpose
- application.
- 15A 24VDC, 15A 120VAC ratings.
- SPNO, SPNC, SPDT and s ealed flux free & sealed
Washable type are available.
| Specification | |
|---|---|
| Contact material | Ag Alloy |
| Contact resistance | 100 mΩ Max |
| Operate time | 10 ms Max |
| Release time | 5 ms Max |
| Insulation resistance | 100 MΩ Min. (DC 500V) |
| Dielectric strength | Between open contact: AC 500V, 50/60Hz 1 min. |
| Between contact and coil: AC 1500V, 50/60Hz 1 min. | |
| Vibration resistance | Operating extremes: 10~50Hz, amplitude 1.5 mm |
| Damage limits: 10~50Hz, amplitude 1.5 mm | |
| Shock resistance | Operating extremes: 10G |
| Damage limits: 100G | |
| Life expectancy | Mechanical: 10,000,000 operations (frequency 18,000 operations/hr) |
| Electrical: 100,000 operations (frequency 1,200 operations/hr) | |
| Operating ambient temperature | -30~+55°C (no freezing) |
| Weight | Approx. 9.5 g |
S 22 20A REALY
Features
- Small footprint.
- Miniature PCB surge cube relay.
- Reverse contact terminal position version is available.
- SPNO, SPNC, SPDT and Sealed flux free & sealed
- Washable type are available.
| Specification | |
|---|---|
| Contact material | Ag Alloy |
| Contact resistance | 100 mΩ Max |
| Operate time | 10 ms Max |
| Release time | 5 ms Max |
| Insulation resistance | 100 MΩ Min. (DC 500V) |
| Dielectric strength | Between open contact: AC 500V, 50/60Hz 1 min. |
| Between contact and coil: AC 1500V, 50/60Hz 1 min. | |
| Vibration resistance | Operating extremes: 10~50Hz, amplitude 1.5 mm |
| Damage limits: 10~50Hz, amplitude 1.5 mm | |
| Shock resistance | Operating extremes: 10G |
| Damage limits: 100G | |
| Life expectancy | Mechanical: 10,000,000 operations (frequency 18,000 operations/hr) |
| Electrical: 100,000 operations (frequency 1,200 operations/hr) | |
| Operating ambient temperature | -30~+55°C (no freezing) |
| Weight | Approx. 9.5 g |
S12 - QCS 30A REALY
Features
- Heavy duty 30A general purpose power relays.
- Optional for open frame, dust cover, sealed type and with and without quick terminal on top ,etc.
- High insulation type Dielectric strength type available.
- Ideal for HVAC, UPS & power supply, home appliances.
| Specification | |
|---|---|
| Contact material | Ag Alloy |
| Contact resistance | 100 mΩ Max |
| Operate time | 10 ms Max |
| Release time | 5 ms Max |
| Insulation resistance | 100 MΩ Min. (DC 500V) |
| Dielectric strength | Between open contact: AC 500V, 50/60Hz 1 min. |
| Between contact and coil: AC 1500V, 50/60Hz 1 min. | |
| Vibration resistance | Operating extremes: 10~50Hz, amplitude 1.5 mm |
| Damage limits: 10~50Hz, amplitude 1.5 mm | |
| Shock resistance | Operating extremes: 10G |
| Damage limits: 100G | |
| Life expectancy | Mechanical: 10,000,000 operations (frequency 18,000 operations/hr) |
| Electrical: 100,000 operations (frequency 1,200 operations/hr) | |
| Operating ambient temperature | -30~+55°C (no freezing) |
| Weight | Approx. 9.5 g |

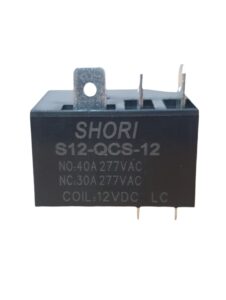

S12 - QCS -12LC 40A REALY
| Specification | |
|---|---|
| Contact material | Ag Alloy |
| Contact resistance | 100 mΩ Max |
| Operate time | 10 ms Max |
| Release time | 5 ms Max |
| Insulation resistance | 100 MΩ Min. (DC 500V) |
| Dielectric strength | Between open contact: AC 500V, 50/60Hz 1 min. |
| Between contact and coil: AC 1500V, 50/60Hz 1 min. | |
| Vibration resistance | Operating extremes: 10~50Hz, amplitude 1.5 mm |
| Damage limits: 10~50Hz, amplitude 1.5 mm | |
| Shock resistance | Operating extremes: 10G |
| Damage limits: 100G | |
| Life expectancy | Mechanical: 10,000,000 operations (frequency 18,000 operations/hr) |
| Electrical: 100,000 operations (frequency 1,200 operations/hr) | |
| Operating ambient temperature | -30~+55°C (no freezing) |
| Weight | Approx. 9.5 g |

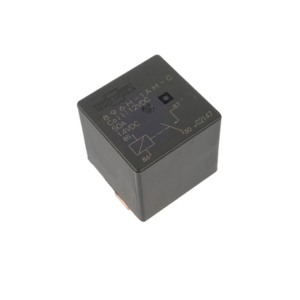

S12H - PAS-12 50A REALY
| Specification | |
|---|---|
| Contact material | Ag Alloy |
| Contact resistance | 100 mΩ Max |
| Operate time | 10 ms Max |
| Release time | 5 ms Max |
| Insulation resistance | 100 MΩ Min. (DC 500V) |
| Dielectric strength | Between open contact: AC 500V, 50/60Hz 1 min. |
| Between contact and coil: AC 1500V, 50/60Hz 1 min. | |
| Vibration resistance | Operating extremes: 10~50Hz, amplitude 1.5 mm |
| Damage limits: 10~50Hz, amplitude 1.5 mm | |
| Shock resistance | Operating extremes: 10G |
| Damage limits: 100G | |
| Life expectancy | Mechanical: 10,000,000 operations (frequency 18,000 operations/hr) |
| Electrical: 100,000 operations (frequency 1,200 operations/hr) | |
| Operating ambient temperature | -30~+55°C (no freezing) |
| Weight | Approx. 9.5 g |
S16-12-AP 80A REALY
Features
- Contact rating 80A,150A.
- High temperature version.
- Compatible fasten terminal arrangement with this kind of power relay.
- Standardized design for plug-in quick connect terminals.
| Specification | |
|---|---|
| Contact material | Ag Alloy |
| Contact resistance | 100 mΩ Max |
| Operate time | 10 ms Max |
| Release time | 5 ms Max |
| Insulation resistance | 100 MΩ Min. (DC 500V) |
| Dielectric strength | Between open contact: AC 500V, 50/60Hz 1 min. |
| Between contact and coil: AC 1500V, 50/60Hz 1 min. | |
| Vibration resistance | Operating extremes: 10~50Hz, amplitude 1.5 mm |
| Damage limits: 10~50Hz, amplitude 1.5 mm | |
| Shock resistance | Operating extremes: 10G |
| Damage limits: 100G | |
| Life expectancy | Mechanical: 10,000,000 operations (frequency 18,000 operations/hr) |
| Electrical: 100,000 operations (frequency 1,200 operations/hr) | |
| Operating ambient temperature | -30~+55°C (no freezing) |
| Weight | Approx. 9.5 g |

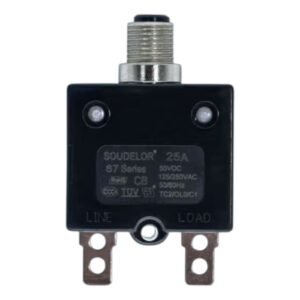

| RATING : 6A, 7A, 10A, 15A, 25A, 30A | |
|---|---|
| Rated operating current | 3AMP – 30AMP |
| Input Power | 125VAC / 250VAC / 32VDC, 50–60Hz |
| Interrupting Capacity | 125VAC × 1000A, 250VAC × 200A |
| Dielectric Strength |
1500VAC / min Leakage current ≤ 0.5mA |
| Resettable Overload Capacity | OL0 250VAC, OL1 250VAC |
| Insulation Resistance | 500VDC / 5s, Insulation Resistance ≥ 100MΩ |
| Reset | Manual Push Reset |
| Calibration (at 25°C) | |
| 100% of Rated Current | Hold, No Trip |
| 150% of Rated Current | Hold (No Trip) |
| 200% of Rated Current | Trip within 5–25 seconds |
RATING : 6A, 7A, 10A, 15A, 25A, 30A
RATING : 6A, 7A, 10A, 15A, 25A, 30A
Rated operating current： 3AMP-30AMP
Input Power: 125VAC/250VAC/32VDC 50-60Hz
Interrupting Capacity:125VACx1000A，250VACx200A
Dielectric Strength: 1500VAC/min,the leaked current is less than≤0.5mA
Resettable Overload Capacity：OL0 250VAC OL1 250VAC
Insulation Resistance:500VDC5S,Insulation Resistance≥100MΩ
Reset:Manual Push Reset
Calibration(at25℃)
100% of Rated Current: Hold,No Trip
150% of Rated Current:150% of Rated Current:
200% of Rated Current:：5-25s Seconds Trip

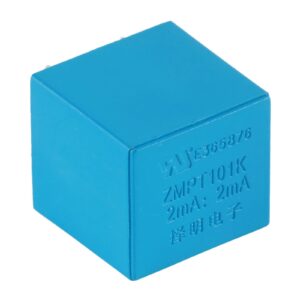

| Model | ZMPT101K |
|---|---|
| Rated input current | 2mA |
| Rated output current | 2mA |
| Turns ratio | 1000 : 1000 |
| Phase angle error | ≤20′ (input 2mA, sampling resistor 50Ω) |
| Linear range | 0–1000V / 0–10mA (sampling resistor 50Ω) |
| Linearity | ≤0.2% (20%dot–120%dot) |
| Permissible error | -0.2% ≤ f ≤ +0.2% (input 2mA, sampling resistor 50Ω) |
| Isolation voltage | 4000V |
| Application | Voltage and power measurement |
| Encapsulation | Epoxy |
| Installation | PCB mounting (Pin Length > 3mm) |
| Operating temperature | -40°C ~ +85°C |
| Model | ZMPT101B |
|---|---|
| Rated input current | 2mA |
| Rated output current | 2mA |
| Turns ratio | 1000 : 1000 |
| Phase angle error | ≤20′ (input 2mA, sampling resistor 100Ω) |
| Operating range | 0–1000V / 0–10mA (sampling resistor 100Ω) |
| Linearity | ≤0.2% (20%dot–120%dot) |
| Permissible error | -0.3% ≤ f ≤ +0.2% (input 2mA, sampling resistor 100Ω) |
| Isolation voltage | 4000V |
| Application | Voltage and power measurement |
| Encapsulation | Epoxy |
| Installation | PCB mounting (Pin Length > 3mm) |
| Operating temperature | -40°C ~ +85°C |
| Electrical parameters | Ipn | 50A | 100A | 125A | 200A | |
| Rated current rms | Ipm | 150A | 300A | 375A | 600A | |
| Measuring range | Np/Ns | 1:1000 | 1:2000 | 1:1000 | 1:2000 | |
| Turn ratio | Isn | 50mA | 50mA | 125mA | 100mA | |
| Rated output | Rs | 30Ω | 50Ω | 30Ω | 50Ω | |
| Coil internal resistance | Rm | (Uc-0.6V)*1000/Is=Rs | ||||
| Max measuring resistance | Uc | ±12V~±15V | ||||
| Supply voltage | Ic | 15mA+Is | ||||
| Current consumption | Vd | 3kVAC/50Hz/1min | ||||
| Insulation voltage | ||||||
| Dynamic parameter | ||||||
| Precision (@Ipn, Ta=25°C) | XG | < ±0.5% | ||||
| Linearity (@Ta=25°C) | Er | < ±0.1%FS | ||||
| Zero offset current (@Ta=25°C, Ipn=0) | Io | < ±0.2mA | ||||
| Magnetic offset current (Ipn->0) | IOH | < ±0.1mA | ||||
| Zero temperature drift | TCV0E | < ±0.005mA/°C | ||||
| Response time | Tr | < 1us | ||||
| Accurately followed | di/dt | > 100A/us | ||||
| Frequency bandwidth (@ -3dB) | BW | DC ~ 200kHz | ||||
| General parameters | ||||||
| Ambient operating temperature | Ta | -40°C ~ +85°C | ||||
| Ambient storage temperature | Ts | -55°C ~ +125°C | ||||
| Weight | m | 21g | ||||
| Case material | PBT G30/G15 UL94-V0 | |||||
| Executive standard | EN50178:1998 IEC60950-1:2001 SJ20790-2000 | |||||
| Parameter | 12 mm | 16 mm | 19 mm | 22 mm |
|---|---|---|---|---|
| Mounting Hole Size | 12 mm | 16 mm | 19 mm | 22 mm |
| Body Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Actuator Type | Flat / High / Ring | Flat / High / Ring | Flat / High / Ring | Flat / High / Ring |
| Operation Type | Momentary (NO/NC) or Latching | Momentary (NO/NC) or Latching | Momentary (NO/NC) or Latching | Momentary (NO/NC) or Latching |
| Contact Rating | 1A–3A @ 250VAC / 5A–12VDC | 3A–5A @ 250VAC / 5A–12VDC | 3A–5A @ 250VAC / 5A–12VDC | 5A @ 250VAC / 5A–12VDC |
| LED Options | None / Ring / Dot | None / Ring / Dot | None / Ring / Dot | None / Ring / Dot |
| LED Voltage | 3V / 6V / 12V–24V / 110V / 220V | 3V / 6V / 12V–24V / 110V / 220V | 3V / 6V / 12V–24V / 110V / 220V | 3V / 6V / 12V–24V / 110V / 220V |
| LED Color | Red, Blue, Green, Yellow | Red, Blue, Green, Yellow | Red, Blue, Green, Yellow | Red, Blue, Green, Yellow |
| Switch Rating Life | 200,000 – 500,000 cycles | 200,000 – 500,000 cycles | 500,000+ cycles | 500,000+ cycles |
| Ingress Protection (IP) | IP65 – IP67 (with O-ring) | IP65 – IP67 | IP65 – IP67 | IP65 – IP67 |
| Contact Type | Silver Contact | Silver Contact | Silver Contact | Silver Contact |
| Operating Temperature | -20°C to +55°C | -20°C to +55°C | -20°C to +55°C | -20°C to +55°C |
| Terminal Type | Solder Lug / Screw / Pin | Solder Lug / Screw / Pin | Solder Lug / Screw / Pin | Solder Lug / Screw / Pin |
ESS TERMINAL - 100A, 120A, 150A, 200A
Type: ESS Terminal Block
Current Rating: 100A, 120A, 150, 200A
Color: Red
Material: Durable, wear-resistant housing
Application: Energy Storage Systems (ESS), solar, backup power
Features: Secure connections, reliable power distribution, compact and robust design.

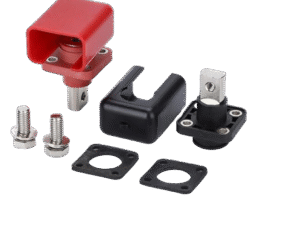

ESS TERMINAL CO - 100A, 120A, 150A, 200A
Product Name ESS Terminal CO-100A, 120A, 150A, 200A (Red & Black)
Terminal Material Copper Core (Nickel/Tin Plated)
Insulating Shell High-Grade ABS / PC (Red)
Mounting Type Panel Mount with Bolt Flange
Terminal Cap Yes – Red Safety Cover Included
Contact Hardware Stainless Steel Nut, Washer, and Bolt

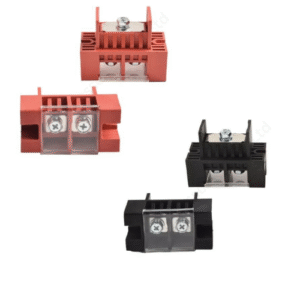

FENCE TERMINAL 1in-2out & 2in-2out-100A & 200A
Type: Fence Terminal Block
Current Rating: 100A & 200A
Connections: 1 IN, 2 OUT , 2IN 2 OUT
Color: Red & Black
Material: Durable, wear-resistant housing
Application: Energy Storage Systems (ESS), solar, backup power
Features: Secure connections, efficient power distribution, compact and high-performance design.

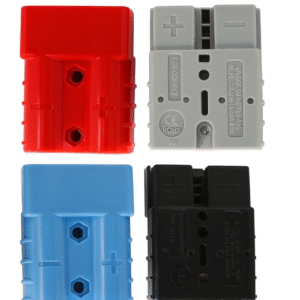

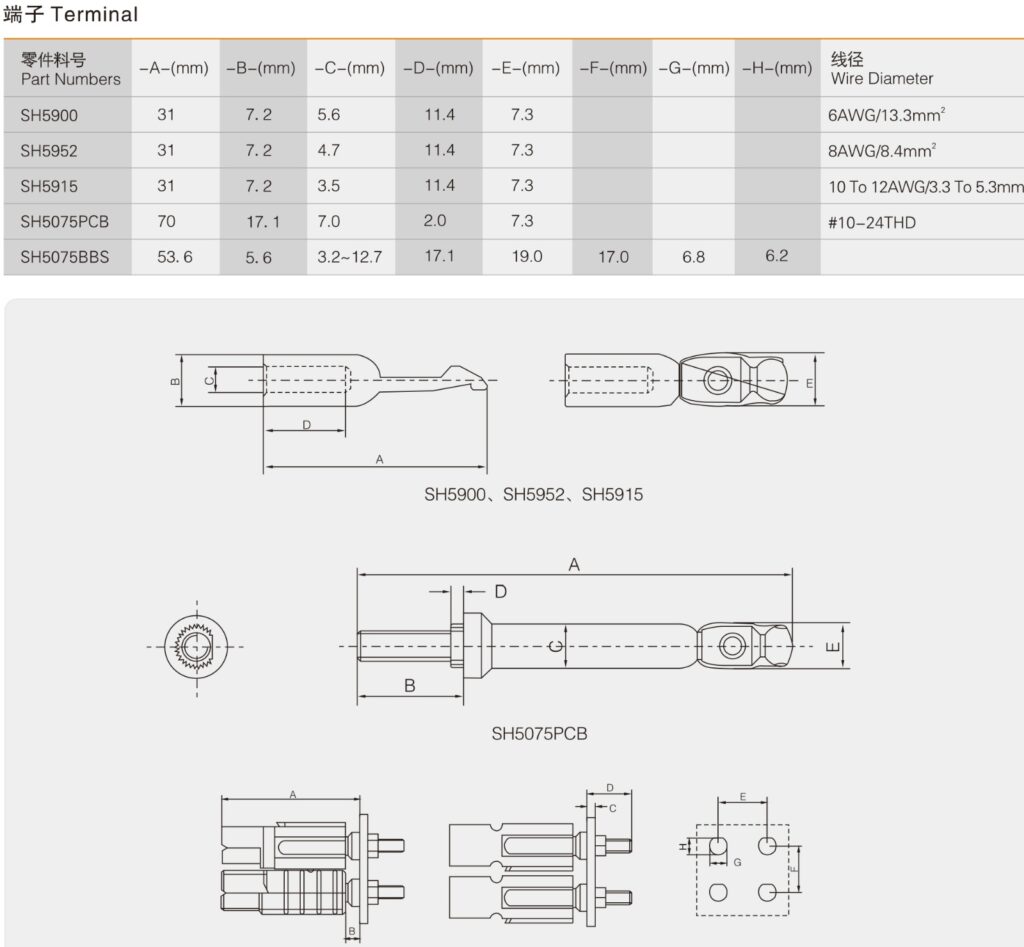

Current Rating: 125A & 250A for high-power applications
Applications: Energy storage systems (ESS), battery systems, solar energy, electric vehicles
Material: Heat-resistant, corrosion-resistant construction for durability
Design: Easy to install, secure electrical connections
Color: Black & Red for enhanced durability
Function: Provides stable, reliable electrical transmission for high-current systems
| Specification | XT30 | XT60 | XT90 |
|---|---|---|---|
| Rated Current (Continuous) | 30A | 60A | 90A |
| Peak Current | ~40A | ~120A | ~120–130A |
| Voltage Rating | 500V DC (varies by brand) | 500V DC | 500V DC |
| Connector Type | 2-pin (Male/Female) | 2-pin (Male/Female) | 2-pin (Male/Female) |
| Contact Material | Gold-plated Copper | Gold-plated Copper | Gold-plated Copper |
| Housing Material | Nylon (PA66) | Nylon (PA66) | Nylon (PA66) |
| Typical Wire Gauge | 16–18 AWG | 12–14 AWG | 8–10 AWG |
| Operating Temperature | -20°C to +120°C | -20°C to +120°C | -20°C to +120°C |
| Dimensions (Male) | ~12.5 × 10 × 6 mm | ~21 × 15 × 8 mm | ~30 × 21 × 10 mm |
| Shape | Compact, mini | Standard XT | Larger, high-current |
